BTX Tonsil CO

Olefin Removal in Aromatic Complexes with Extruded and Granular Products

TONSIL ® APT series catalysts have their basis on the expertise which was gained with the TONSIL® CO series. The Tonsil APT series has multiple products for each process to meet the different requirements in terms of activity and selectivity. Generally, Tonsil catalysts contain less side reaction active sites and have high surface area and superior pore properties. Those properties ensure the long cycle time of Tonsil catalysts, thus reduce the number of change outs and operation cost, increase the operation efficiency and reduce energy consumption. Clariant has gained now also with APT series years of experience in aromatics treatment.

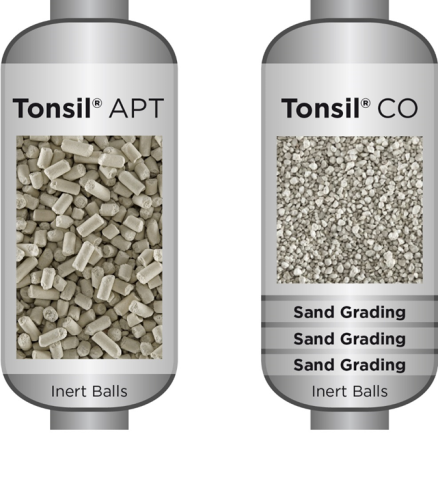

BTX_TonsilCO APT

TONSIL ® CO series catalysts have been establishing an outstanding status around the world. The Tonsil series has multiple products for each process to meet the different requirements in terms of activity and selectivity. Generally, Tonsil catalysts contain less side reaction active sites and have high surface area and superior pore properties. Those properties ensure the long cycle time of Tonsil catalysts, thus reduce the number of change outs and operation cost, increase the operation efficiency and reduce energy consumption. Clariant has years of experience in aromatics treatment and is committed to continuously improve these materials to adapt them to the increasing requirements of the petrochemical industry.

TONSIL® APT series has several advantages over the TONSIL® CO series.

  • No sand grading is required
  • Loading procedure is less complex without sand grading
  • Higher bulk density Longer cycle life Less start-ups and shut-downs
  • Lower pressure drop
  • Lower energy consumption
  • Finally leads to lower CAPEX and OPEX over the whole year


PRODUCTS

  • TONSIL® APT-mX: Heavy Reformate and feeds with high Bromine Index
  • TONSIL® APT-mX/L: Heavy Reformate and feeds with high Bromine Index / Low Moisture
  • TONSIL® APT-BT: Benzene / Toluene / Xylene feeds with medium Bromine Index
  • TONSIL® APT-BT/L: Benzene / Toluene / Xylene feeds with medium Bromine Index / Low Moisture
  • TONSIL® APT-pX: Xylene feeds with low Bromine Index
  • TONSIL® APT-pX/L: Xylene feeds with low Bromine Index / Low Moisture
  • TONSIL® APT-N: Nitrogen Removal of Benzene / Toluene / Xylene feeds with medium Bromine Index
  • TONSIL® APT-N/L: Nitrogen Removal of Benzene / Toluene / Xylene feeds with medium Bromine Index / Low Moisture

APPLICATIONS

  • Aromatic complexes: olefin removal from para-xylene rerun
  • Aromatic complexes: olefin removal from benzene and toluene and xylene
  • Aromatic complexes: olefin removal from heavy reformate and mixed xylenes
  • Aromatic complexes: adsorption of organic nitrogen / organic sulfur from extraction units

BENEFITS

CompositionOfTheCrudeOil_EN_S

Longstanding experience around the world with multiple feedstocks

Dolar_Hand

Excellent cycle life even for heavy feedstocks and high amount of impurities

COST_EFFICIENT_S

Less start-ups and shut-downs

Kiste_Pfeile

High selectivity leads to less dealkylation

EASY_TO_USE_S

Easy reactor loading procedure

SERVICES

  • Assistance during start-up and shut-down
  • Performance Monitoring Optimizing of performance and increase time on-stream
  • On-site coaching of technical personnel
  • Detection of de-activation mechanism and impurities

PACKAGING

  • Typical packaging in 1.000kg big bags
  • Protection against moisture through double shrink wrapping foil

CERTIFICATIONS

  • ISO 9001
  • ISO 14001
  • ISO 18001
