着火の問題を解決
E&E製品に含まれるプラスチックには
耐火保護が施されている必要があります


導電性のある金属部品に接続するプラスチック部品は、燃えやすい傾向があり、厳しい火災安全規則に準拠する必要があります。 したがって電子デバイスは、火の拡大や延焼を難燃剤によって保護する必要があります。 クラリアントのExolit® OPでは、個別のニーズに合わせた非ハロゲン系有機リン化合物ベースの難燃剤シリーズを取り扱っています。これは、従来型の難燃剤に代わる、安全で環境に適合した製品です。



課題
着火の問題への助剤自体も
ときによっては危険を伴うことがあります

いわゆるハロゲン化難燃剤については論争中です。 それは、燃えるときに腐食性ガスを放出する可能性があるからです。 ハロゲン化ダイオキシンなどの分解生成物が生成される可能性があり、いくつかのハロゲン化難燃剤は、それ自体が健康に有害であるとの疑いを持たれています。
CLA_LP_IS_Exolit_2_Challenge_1920x800
x

ソリューション

Exolit® OPシリーズは、燃え始める前に火を消します

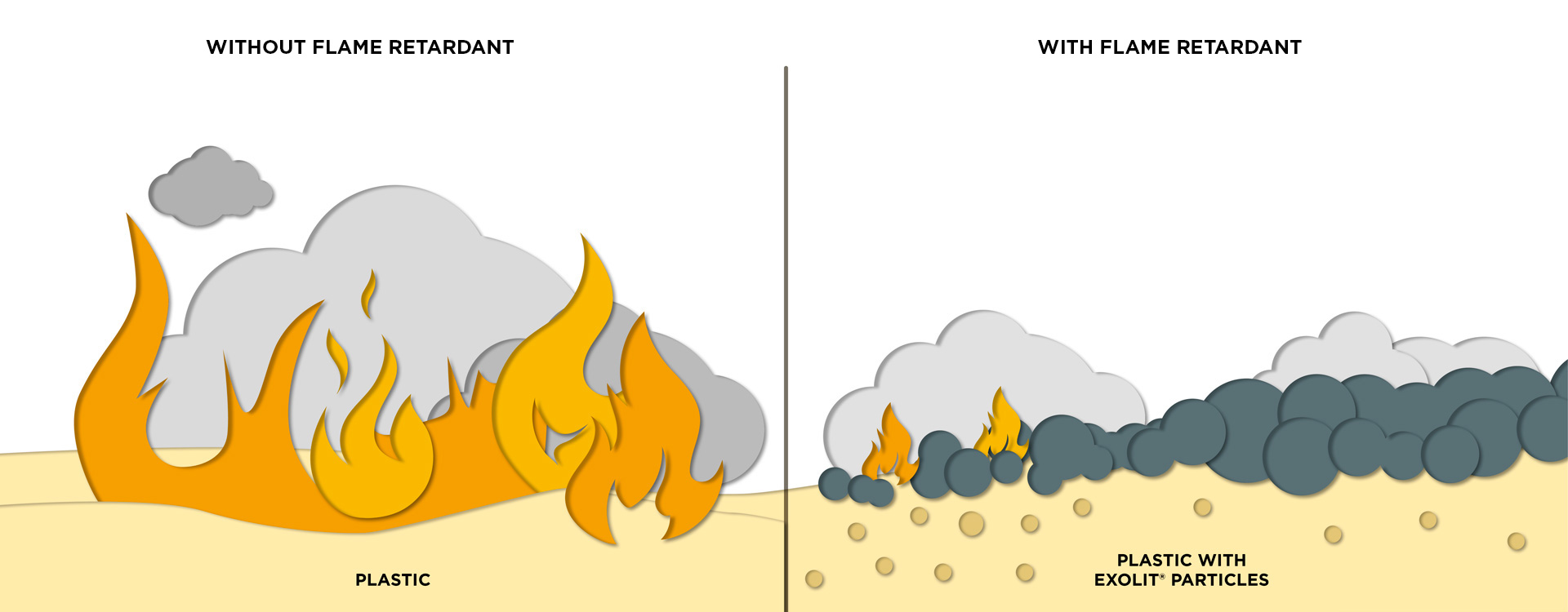

最新のExolit® OPシリーズは、非ハロゲン化有機リン化合物ベースです。プラスチックのライフサイクルを通して、広範囲におよぶ毒性試験の結果、その好ましい環境プロファイルが明らかになりました。Exolit® OPを含有するプラスチックが燃焼すると、ガスが放出されます。そのガスが燃焼するプラスチックを泡に変え、速やかに不燃性炭化物の保護層を形成します。この保護層は、まだ燃焼していない下層のプラスチックを熱から隔離すると同時に、大気中の酸素から遮断します。
CLA_LP_IS_Exolit_3_Solution_Illu_FlameRet_1920x750
難燃剤なし 難燃剤を使用
x

ベネフィット

あらゆるニーズに応える、幅広いソリューションは、
安全で環境に適合する代替品を必要とします

Hostavin_Now9
CLA_LP_IS_Exolit_4_Benefit_Icon_2_SAFE_350x126px

LESS AGGRESSIVE SMOKE

If a fire does occur, much less aggressive smoke is produced
CLA_LP_IS_Exolit_4_Benefit_Icon_3_CIRCUIT_PREVENTION_350x126px

PREVENTION OF SHORT CIRCUITS

Less fire risk in current-carrying metal parts in contact with plastic

さらに詳しい情報については、

当社までお問い合わせください

お電話でお問い合わせになるか、
添加剤ビジネスユニットの
難燃剤担当までご連絡ください。–

x
  • Exolit® OP 1230

    Exolit OP 1230 is a white, fine-grained powder based on an organic phosphinate. The product is non-hygroscopic and it is insoluble in water and organic solvents. Clariant’s Exolit OP flame retardants for polyamides are all based on aluminum diethyl-phosphinate (= DEPAL). The pure substance DEPAL is sold as Exolit OP 1230 and in combination with synergists as Exolit OP 13xx types. Exolit OP 1230 is the first non-halogenated flame retardant which can withstand the demanding requirements of this high end segment of engineering plastics.For more details see our Innovation Spotlight video.

    追加情報
  • Exolit® OP 1240

    Exolit OP 1240 is a flame retardant based on an organic aluminum phosphinate which is a thermally stable white solid without any hazard classification or labeling. It can be easily compounded into polyesters and subsequently processed again to manufacture flame retarded parts used in consumer or industrial products. For more details see our Innovation Spotlight video.

    追加情報
  • Exolit® OP 1260

    Flame Retardant for Polyester Exolit OP 1260 is a non-halogenated flame retardant based on organic phosphinates. The product achieves its flame retardant effect through a combined gas phase and condensed phase mode of action. Exolit OP 1260 is based on commercially available chemical substances registered in inventories worldwide.For more details see our Innovation Spotlight video.

    追加情報
  • Exolit® OP 1311

    Exolit OP 1311 is a non-halogenated flame retardant based on organic phosphinates. The product achieves its flame retardant effect through intumescence. The thermoplastic polymer with Exolit OP 1311 foams and crosslinks on exposure to flame and forms a stable char at the surface acting as a barrier. The protective layer provides a heat-insulating effect, reduces oxygen access and prevents dripping of molten polymer. Exolit OP 1311 is a white powder.For more details see our Innovation Spotlight video.

    追加情報
  • Exolit® OP 1312

    Exolit OP 1312 is a non-halogenated flame retardant based on organic phosphinates. The product achieves its flame retardant effect through intumescence. The thermoplastic polymer with Exolit OP 1312 foams and crosslinks on exposure to flame and forms a stable char at the surface acting as a barrier. The protective layer provides a heat-insulating effect, reduces oxygen access and prevents dripping of molten polymer. Exolit OP 1312 is a white powder.For more details see our Innovation Spotlight video.

    追加情報
  • Exolit® OP 1314

    Exolit OP 1314 is a non-halogenated flame retardant based on organic phosphinates. The product achieves its flame retardant effect through intumescence. The thermoplastic polymer with Exolit OP 1314 foams and crosslinks on exposure to flame and forms a stable char at the surface acting as a barrier. The protective layer provides a heat-insulating effect, reduces oxygen access and prevents dripping of molten polymer. Compared to Exolit OP 1312, the product gives an improved thermal stability of polyamide compounds. Exolit OP 1314 is a white powder.For more details see our Innovation Spotlight video.

    追加情報
  • Exolit® OP 550

    Clariant’s Exolit OP 550 is a flame retardant specifically designed for flexible polyurethane foams. The product is a reactive flame retardant that can be chemically reacted into the PU matrix, preventing unwanted migration from the material. Therefore, very stringent emission standards for PU flexible foams can be achieved. This makes the product suitable for low VOC applications, for example in the automotive industry. Exolit OP 550 is a medium-viscosity liquid, based on a non-halogenated phosphorus polyol with a functionality of approx. 2.

    追加情報
  • Exolit® OP 560

    Clariant’s Exolit OP 560 is a flame retardant specifically designed for flexible polyurethane foams. As a reactive flame retardant, it can be chemically reacted into the PU matrix, preventing unwanted migration from the material. Therefore, Exolit OP 560 allows meeting the most stringent VOC requirements of the automotive industry and has shown best-in-class performance in demanding low-emission applications. Exolit OP 560 is an easily-to-handle low-viscosity liquid, with a functionality of approx. 2.Exolit OP 560 has been confirmed as »an alternative anticipated to be safer for use in upholstered polyurethane foam« by the United States Environmental Protection Agency (U. S. EPA, August 2015, EPA 744-R-15-002)

    追加情報
  • Exolit® OP 930

    Exolit OP 930 is a white, fine-grained powder based on an organic phosphinate. The product is not hygroscopic and it is insoluble in water and common organic solvents like acetone, dichloromethane, MEK, toluene. Exolit OP 930 can easily be dispersed in solvents like acetone or MEK. For more details see our Innovation Spotlight video.

    追加情報
  • Exolit® OP 935

    Exolit OP 935 is a white, fine-grained powder based on an organic phosphinate. The product is not hygroscopic and it is insoluble in water and common organic solvents like acetone, dichloromethane, MEK, toluene. Exolit OP 935 can easily be dispersed in solvents like acetone or MEK.For more details see our Innovation Spotlight video.

    追加情報
  • Exolit® OP 950

    Exolit OP 950 is a white granular powder based on an organic phosphinate. The product is not hygroscopic and slightly soluble both in water and in common organic solvents. It melts at 200 °C.For more details see our Innovation Spotlight video.

    追加情報
