Novel Steam Reforming Catalyst

REFORMAX LDP Plus

ReforMax® LDP Plus series are a novel steam reforming catalysts for ammonia, hydrogen and methanol production.

The ReforMax LDP Plus series is designed with a larger hole diameter, which greatly improves heat transfer. Moreover, by significantly reducing pressure drop, the innovative reforming catalyst enables higher gas throughput, as well as considerable energy savings.

Syngas producers also benefit from the suppression of coke (carbon) formation, especially when ReforMax 330 LDP Plus is combined with ReforMax 210 LDP Plus.
  • ReforMax® 330 LDP Plus

    ReforMax® 330 LDP Plus is a novel steam reforming and autothermal reforming catalyst for ammonia, hydrogen and methanol production. Based on ReforMax 330 LDP, the new catalyst’s floral 8-hole form lowers pressure drop by an additional 20% while offering its predecessor’s high activity and selectivity.ReforMax 330 LDP Plus is designed with a larger hole diameter, which greatly improves heat transfer. Moreover, by significantly reducing pressure drop, the innovative reforming catalyst enables higher gas throughput, as well as considerable energy savings in the production of ammonia, hydrogen and methanol. Syngas producers also benefit from the suppression of coke (carbon) formation, especially when ReforMax 330 LDP Plus is combined with ReforMax 210 LDP Plus.

    more
  • ReforMax® 210 LDP Plus

    ReforMax® 210 LDP Plus is an advanced steam reforming catalyst for ammonia, hydrogen and methanol production. Based on the highly active and selective ReforMax 210 LDP, the new catalyst’s flower-like 8-hole shape lowers pressure drop by an additional 20% while retaining its predecessor’s benefits.ReforMax 210 LDP Plus is designed with a larger hole diameter, which greatly improves heat transfer. Moreover, by significantly reducing pressure drop, the innovative steam reforming catalyst enables higher gas throughput, as well as considerable energy savings in syngas production.

    more

New 8-hole flower shape for low pressure drop

Based on ReforMax LDP series, the new catalyst’s floral 8-hole shape lowers pressure drop by an additional 20% while maintaining a High Geometric Surface Area (GSA) offering high activity and selectivity.

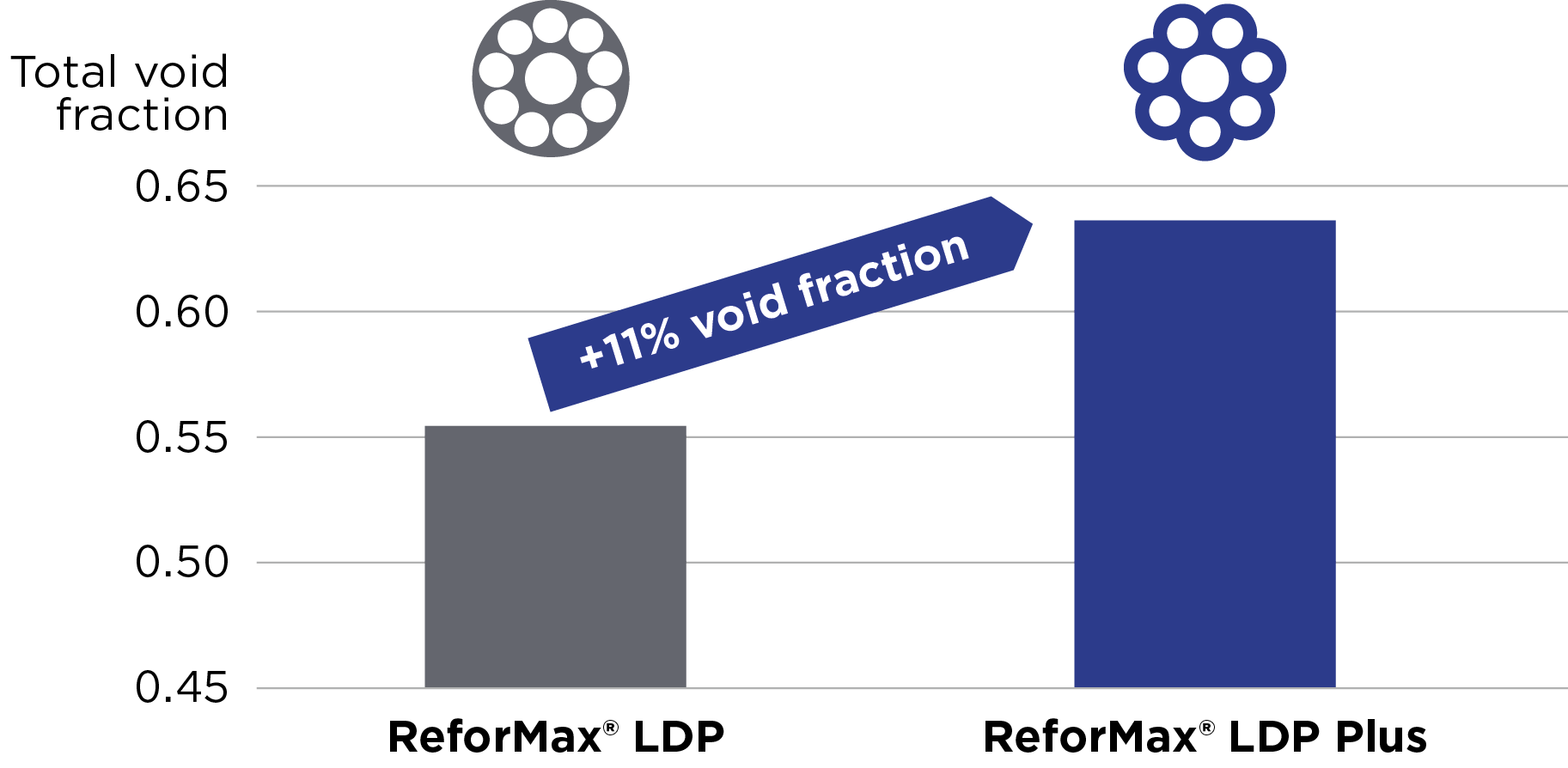

ReforMax LDP Plus 8 hole floral shape enhances void fraction

The unique flower-like 8-hole shape of ReforMax 330 LDP Plus (standard) and ReforMax 210 LDP Plus (slightly alkalized) provides an enhanced void fraction which enables a significant lower pressure drop while retaining the outstanding activity of Clariant’s well known 10-hole ReforMax LDP catalyst series.

Clariant Image void fraction 2020

The increased void fraction inside and between the particles leads to:

  •   An unchanged high activity of

    ReforMax® LDP Plus (vs. ReforMax® LDP)
  •   20% lower pressure drop for

    ReforMax® LDP Plus (vs. ReforMax® LDP)

Significant decrease of pressure drop

The novel ReforMax LDP Plus shape leads to an outstanding pressure drop decrease of approx. 20%

Reformax_Grafiken_Web_pressure_drop

Outstanding catalyst activity due to high Geometric Surface Area (GSA)

The novel ReforMax LDP Plus shape retains the high surface area of Clariant’s standard LDP 10-hole shape resulting in an unchanged outstanding catalyst activity for the steam reforming reaction.

Reformax_Grafiken_Web_surface_area

How ReforMax LDP Plus series

BENEFITS YOU

Performance benefits

Commercial benefits

Clariant Icon 01_ReforMax_LDP_PLUS_Benefits_Decrease 2020



DECREASE OF PRESSURE DROP BY APPROX. 20%
compared to LDP standard shape

Clariant Icon 06_ReforMax_LDP_PLUS_Benefits_Increase_gas 2020



INCREASE OF GAS THROUGHPUT
by up to 11% (if no other limitation) thanks to lower pressure drop of the catalyst

Clariant Icon 02_ReforMax_LDP_PLUS_Benefits_High Activity 2020



HIGH ACTIVITY
due to high geometric surface area

Clariant Icon 07_ReforMax_LDP_PLUS_Benefits_Energy_savings 2020



ENERGY SAVINGS
in hydrogen, ammonia methanol production process (up to 60,000 USD/year for a typical ammonia plant with a capacity of 1,500 mtpd)

Clariant Icon 03_ReforMax_LDP_PLUS_Benefits_heat transfer 2020



IMPROVED HEAT TRANSFER
by increased hole diameters

Clariant Icon 04_ReforMax_LDP_PLUS_Benefits_Suppression_Carbon 2020



SUPPRESSION OF CARBON FORMATION
especially if ReforMax® 330 LDP Plus
is combined with ReforMax® 210 Plus

Clariant Icon 05_ReforMax_LDP_PLUS_Benefits_Outstanding_Physical 2020

OUTSTANDING PHYSICAL STRENGTH
