Creating change

FROM SOIL TO AIR

The planet is changing and there’s no denying that our bad habits have made their contribution. But there is a way we can activate our environmental responsibility again: Innovative technologies can reduce emissions. New materials can conserve scarce resources. And central to all this is the will, not only to demand sustainability, but to create it.

On a mission to fewer emissions

INVENTOR THOMAS ENGELHARDT AND THE SECRET OF ECOSIL® LE

You are the inventor of the LE Technology. Did you make the discovery by accident or did you pursue the goal intentionally?
Let me emphasize first that the starting point of this innovation—like all development projects of Functional Minerals—was a clear customer need: the reduction of foundry emissions. Our in-depth analysis of emission sources showed that both the organic binders in the cores, as well as the traditional carbon-based lustrous carbon generators in the green sand system, contribute to BTEX (benzene, toluene, ethyl benzene, xylene) emissions. Since Clariant provides green sand additives, I focused on a systematic screening of natural carbon materials with a low profile on volatiles creation under casting conditions that can substitute the traditional materials. Finally, I was able to identify a special grade of graphite fulfilling all requirements. It was by no means an accident, but like with all inventions, a bit of luck was involved.

Why of all things are BTEX emissions so important for the foundry industry?
Based on the simple fact that liquid iron at up to 1500 °C hits carbon in the green molding sand, the creation of volatile organic components and also dangerous BTEX emissions were deemed inevitable. This is why the legal limit for benzene emissions, for example, is four times higher for foundries than for other industries.

Are all types of graphite suitable for LE Technology?
A special graphite grade, which was carefully selected over a long development process, is only one part of LE Technology. In contrast to bentonite, graphite cannot be dispersed very easily in a green sand system. For the success of LE Technology the combination of special graphite and dispersion agents is very important.

»We developed a test rig in our application lab that measures emissions from green sand systems under realistic foundry process conditions.«

LE_engelhardt_image2
GC-MS (gas chromatography-mass spectrometry) instrument
LE_engelhardt_image1

Dr. Thomas Engelhardt
Lab Head Application Development EMEA
Functional Minerals

LE_80_cloud
You’ve developed a method by which you can measure and compare emissions. How does this technology work?
Anybody can just promise lower emissions. To convince customers, you need to provide hard facts. We thus developed a test rig in our application lab that measures emissions from green sand systems under realistic foundry process conditions. Just like in a foundry, we pour liquid iron in a standardized green sand mold and collect all the gases in a specially designed absorber trap. We then desorb the gases from the absorber and analyze them qualitatively and quantitatively with state-of-the-art GC-MS techniques.

How do you evaluate the results?
To prove the efficiency of our LE system to customers and authorities, we ask our customers to send us a green sand sample from their established process using traditional additives prior to introduction of the LE Technology. We measure the current BTEX emissions and use the results as a baseline later. After introduction of the LE Technology, the foundry sends us a second green sand sample, which is also analyzed regarding BTEX emissions in our application lab. The direct comparison of both samples proves the reduction of BTEX emissions from the green sand system to the customer. Customers who also need to reduce their emissions from cores can substitute organic with inorganic binder systems.

You are the inventor of the LE Technology. Did you make the discovery by accident or did you pursue the goal intentionally?
Let me emphasize first that the starting point of this innovation—like all development projects of Functional Minerals—was a clear customer need: the reduction of foundry emissions. Our in-depth analysis of emission sources showed that both the organic binders in the cores, as well as the traditional carbon-based lustrous carbon generators in the green sand system, contribute to BTEX (benzene, toluene, ethyl benzene, xylene) emissions. Since Clariant provides green sand additives, I focused on a systematic screening of natural carbon materials with a low profile on volatiles creation under casting conditions that can substitute the traditional materials. Finally, I was able to identify a special grade of graphite fulfilling all requirements. It was by no means an accident, but like with all inventions, a bit of luck was involved.

Why of all things are BTEX emissions so important for the foundry industry?
Based on the simple fact that liquid iron at up to 1500 °C hits carbon in the green molding sand the creation of volatile organic components and also dangerous BTEX emissions were deemed inevitable. This is why the legal limit for benzene emissions, for example, is four times higher for foundries than for other industries.

Are all types of graphite suitable for LE Technology?
A special graphite grade, which was carefully selected over a long development process, is only one part of LE Technology. In contrast to bentonite, graphite cannot be dispersed very easily in a green sand system. For the success of LE Technology the combination of special graphite and dispersion agents is very important.

»We developed a test rig in our application lab that measures emissions from green sand systems under realistic foundry process conditions.«

LE_engelhardt_image2
LE_engelhardt_image1

Dr. Thomas Engelhardt
Lab Head Application Development EMEA
Functional Minerals

LE_80_cloud
You’ve developed a method by which you can measure and compare emissions. How does this technology work?
Anybody can just promise lower emissions. To convince customers, you need to provide hard facts. We thus developed a test rig in our application lab that measures emissions from green sand systems under realistic foundry process conditions. Just like in a foundry, we pour liquid iron in a standardized green sand mold and collect all the gases in a specially designed absorber trap. We then desorb the gases from the absorber and analyze them qualitatively and quantitatively with state-of-the-art GC-MS techniques.

How do you evaluate the results?
To prove the efficiency of our LE system to customers and authorities, we ask our customers to send us a green sand sample from their established process using traditional additives prior to introduction of the LE Technology. We measure the current BTEX emissions and use the results as a baseline later. After introduction of the LE Technology, the foundry sends us a second green sand sample, which is also analyzed regarding BTEX emissions in our application lab. The direct comparison of both samples proves the reduction of BTEX emissions from the green sand system to the customer. Customers who also need to reduce their emissions from cores can substitute organic with inorganic binder systems.

You are the inventor of the LE Technology. Did you make the discovery by accident or did you pursue the goal intentionally?
Let me emphasize first that the starting point of this innovation—like all development projects of Functional Minerals—was a clear customer need: the reduction of foundry emissions. Our in-depth analysis of emission sources showed that both the organic binders in the cores, as well as the traditional carbon-based lustrous carbon generators in the green sand system, contribute to BTEX (benzene, toluene, ethyl benzene, xylene) emissions. Since Clariant provides green sand additives, I focused on a systematic screening of natural carbon materials with a low profile on volatiles creation under casting conditions that can substitute the traditional materials. Finally, I was able to identify a special grade of graphite fulfilling all requirements. It was by no means an accident, but like with all inventions, a bit of luck was involved.

Why of all things are BTEX emissions so important for the foundry industry?
Based on the simple fact that liquid iron at up to 1500 °C hits carbon in the green molding sand the creation of volatile organic components and also dangerous BTEX emissions were deemed inevitable. This is why the legal limit for benzene emissions, for example, is four times higher for foundries than for other industries.

Are all types of graphite suitable for LE Technology?
A special graphite grade, which was carefully selected over a long development process, is only one part of LE Technology. In contrast to bentonite, graphite cannot be dispersed very easily in a green sand system. For the success of LE Technology the combination of special graphite and dispersion agents is very important.

LE_engelhardt_image1

Dr. Thomas Engelhardt
Lab Head Application Development EMEA
Functional Minerals

»We developed a test rig in our application lab that measures emissions from green sand systems under realistic foundry process conditions.«

LE_80_cloud
You’ve developed a method by which you can measure and compare emissions. How does this technology work?
Anybody can just promise lower emissions. To convince customers, you need to provide hard facts. We thus developed a test rig in our application lab that measures emissions from green sand systems under realistic foundry process conditions. Just like in a foundry, we pour liquid iron in a standardized green sand mold and collect all the gases in a specially designed absorber trap. We then desorb the gases from the absorber and analyze them qualitatively and quantitatively with state-of-the-art GC-MS techniques.

How do you evaluate the results?
To prove the efficiency of our LE system to customers and authorities, we ask our customers to send us a green sand sample from their established process using traditional additives prior to introduction of the LE Technology. We measure the current BTEX emissions and use the results as a baseline later. After introduction of the LE Technology, the foundry sends us a second green sand sample, which is also analyzed regarding BTEX emissions in our application lab. The direct comparison of both samples proves the reduction of BTEX emissions from the green sand system to the customer. Customers who also need to reduce their emissions from cores can substitute organic with inorganic binder systems.

LE_engelhardt_image2

Treasure down below

THE VOLCANIC HISTORY OF BENTONITE

From the depths of the Earth, to the heights of the atmosphere—and back. The history of most bentonite deposits began with a bang, and ash was propelled skywards as part of a volcanic eruption.

From the depths of the Earth, to the heights of the atmosphere—and back. The history of most bentonite deposits began with a bang, and ash was propelled skywards as part of a volcanic eruption.

Start

SHAKE, RATTLE AND THROW

Volcano eruptions start with a rumble and a plume of smoke, before shooting a column of lava, gas and ash upwards—sometimes as high as 16 miles!

Next

CRASHING ASH

As the ash falls, it is carried away by wind to far-off valleys and hollows, where it deposits glass-containing rocks known as vitreous tuff.

Next

WHAT RIVERS MAY BRING

Rivers transport the ash again and layers of rock and sand cover and protect the volcanic ash deposits against erosion.

Next

PRESSURE COOKER

Over eons, the deposits are subjected to high pressure and temperatures that form bentonite, while the landscape above undergoes massive changes.

Next

BACK TO THE START

Wanna see it again? With just a click you can jump back in time 13 million years.

Restart

SHAKE, RATTLE AND THROW

Volcano eruptions start with a rumble and a plume of smoke, before shooting a column of lava, gas and ash upwards—sometimes as high as 16 miles!

CRASHING ASH

As the ash falls they are carried away by wind to far-off valleys and hollows, where it deposits glass-containing rocks known as vitreous tuff.

WHAT RIVERS MAY BRING

Rivers transport the ash again and layers of rock and sand cover and protect the volcanic ash deposits against erosion.

PRESSURE COOKER

Over eons, the deposits are subjected to high pressure and temperatures that form bentonite, while the landscape above undergoes massive changes.

  • Exploration

    Bentonite
    beneath
    your feet

    A massive bentonite deposit was discovered by chance over one hundred years ago in Gammelsdorf, Germany, just northeast of Munich. Ever since, people have been mining this valuable resource. After using wide-scale test boring to locate significant deposits, the most interesting portion of the mining process begins: negotiating with the landowner, or dozens of owners, as is oftentimes the case.

    FUN FACT

    According to German Mining Law, the landowner owns bentonite deposits all the way to the Earth’s core.

  • Opening Up

    Dig deeper,
    layer after
    layer

    Once we’ve obtained all the required permits, we can begin excavating. Layer after layer of topsoil, gravel and rock are removed and stockpiled separately. In an effort to save energy, the overburden is removed in a circular fashion so that the dump trucks can unload their 40-ton load from a new hole into an old one. This keeps trip lengths to a minimum.

    FUN FACT

    In 1313, Gammelsdorf saw the last battle of armor-clad knights on German soil. Artifacts from the encounter pop up every now and again.

  • Extraction

    From the
    mine to the
    production

    A massive 5-ft thick layer of bentonite lies at a depth of approx. 90ft. To keep the clay from being exposed to impurities, a 3-ft protective layer of overburden is left in place. Now the excavators roll in and remove the bentonite. In Gammelsdorf, we mine for 15 different qualities. We then ship them to Moosburg, our largest production site, where they are processed into products as diverse as bleaching earths, foundry binders and drilling additives.

    FUN FACT

    300,000 tons of bentonite are mined in Gammelsdorf annually—the same size of a meteor that slammed into Arizona to create the Meteor Crater.

  • Refilling

    Filling
    the gap

    After we’ve excavated the bentonite deposit, it’s time to begin with the re-naturalization of the site. Rock, gravel and topsoil are re-layered in their original order and packed back into the earth with a bulldozer. While doing so, it is essential to ensure that water supply and runoff are maintained, before re-cultivating the site. The last step is to pour in the meticulously stockpiled topsoil and model the landscape according to the landowner’s requirements.

    FUN FACT

    Farmers sometimes opt to receive their land back landscaped in a different shape than it was before to control water runoff and increase crop efficiency.

  • Back to Nature
    Mining

    Helping
    nature
    blossom

    To re-naturalize land, it is not enough to simply fill a hole. Life must return. For this purpose, we plant leguminous crops to activate microbial life in the soil. After two years, the soil has been sufficiently enriched and we begin with planting. We take utmost care to increase biodiversity by choosing suitable planting schemes (mixed woodlands) and creating biotopes.

    FUN FACT

    The scrapedozers are designed in such a way that they put no more strain on the soil than a pedestrian.

»At every step of the mining process, from discovery to extraction to re-naturation, we are in close contact with residents. Maintaining good relations to locals is more precious than any mineral.«

Klaus Schmidbauer,
Quarry Manager Gammelsdorf

»At every step of the mining process, from discovery to extraction to re-naturation, we are in close contact with residents. Maintaining good relations to locals is more precious than any mineral.«

Klaus Schmidbauer,
Quarry Manager Gammelsdorf

Building a better binder

THE ACTIVATION OF BENTONITE

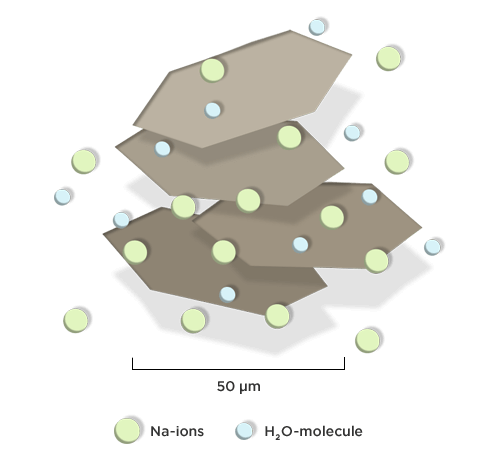

Natural bentonites occur in two main forms: Na-based and Ca-based. While Ca-bentonite is more common, Na-bentonite is a more effective binder. To boost the binding power of Ca-bentonite, it is subjected to a chemical reaction with soda ash to activate its outer and inner surfaces, which increases its ability to bind water.

(Ca)-bentonite + Na2CO3

(Na2)-bentonite + CaCO3

50 µm

  • Ca-ions
  • Na-ions
  • H2O-molecule

Cast from the Earth

INTO THE MIDDLE OF THE MIX

Play
x

Packing iron while it’s hot

THE LE TECHNOLOGY IN ACTION

The vast majority of iron flows in green sand molds for automotive parts, such as engine blocks, transmission parts or brake discs. How does changing to LE Technology influence the production process? To get the inside scoop, we asked one of Europe’s largest automotive companies, PSA PEUGEOT CITROËN.
How did it come to be that PSA began using LE Technology?
As the environmental authorities officially requested us to lower our BTEX emissions outside the chimneys, we studied what Clariant offers as a solution.

What were some of the issues you were having with your previous product?
There is no real existing issue except a lustrous carbon generator level in the premix.

When did you become convinced of LE Technology?
Thanks to the various presentations done by Clariant and their BTEX tests on molding sands.

How complicated was it refitting the foundry for LE Technology?
Some precautions must be taken. At the implementation phase, it is important to define the first recipe to be used, and then decrease the lustrous carbon generator rate percent step by step.

Would you recommend LE Technology?
Yes, because using it contributes to improving the quality of our environment. The implementation of LE Technology is easy but more controls of the sand system are necessary during the product changeover steps. This technology helps reduce the consumption of premix.

What concrete benefits does it provide PSA in the production process for ventilated break discs?
Basically the benefits are a reduction of the BTEX emissions, improvement of the molding and mold release accuracy and reduction of the premix consumption.

To what extent have your emission levels improved since you started using LE Technology?
Based on the latest analysis, we confirm a reduction of the emissions, the extent of which remains to be concretely evaluated thanks to a complementary analysis we are currently working on.

LE_Peugeot2

Source: PSA PEUGEOT CITROËN, a Clariant customer

Treading lightly

HOW TO CHANGE A GLOBAL FOOTPRINT

Millions of tons of liquid iron are poured into cast forms annually around the globe. Production is increasing—and with it the amount of toxic BTEX emissions. To ensure responsible action, it is essential to be on site. Our production facilities around the world cover the most important markets to seamlessly get LE to where it needs to go. We’re right around the corner.
  • Europe

    y-axis: Ferrous castings (mil. t)

    Mr. Lorenzo Sechi
    Head of Business Group Foundry Additives EMEA

    »Lowest cost of ownership and being a good neighbor—LE Technology helps my customers achieve both.«

    E-Mail
  • Brazil

    y-axis: Ferrous castings (mil. t)

    Mr. Marcelo Medeiros
    Sales Manager Foundry Additives Brazil

    »Brazil is adopting stricter environmental standards by the day—LE Technology will be a great addition for foundries to meet them.«

    E-Mail
  • China

    y-axis: Ferrous castings (mil. t)

    Mrs. Zefen He
    Sales Manager Foundry Additives China

    »LE Technology will be a great help for Chinese foundries to achieve the ambitious targets for emission reductions mandated by the latest government 5-year plan.«

    E-Mail
  • Korea

    y-axis: Ferrous castings (mil. t)

    Mr. Woon Jong Cho
    Sales Manager Foundry Additives Korea

    »Korean foundries are looking for sustainable solutions—I will show them how LE Technology will benefit them.«

    E-Mail
  • SEAP

    y-axis: Ferrous castings (mil. t)

    Mr. Ittipon Udomsilp
    Regional Sales Manager SEAP

    »Increased productivity by LE Technology will be a major topic for my customers.«

    E-Mail

Any questions left?

LEARN HOW LE TECHNOLOGY SUPPORTS YOUR PROCESS

Making the switch is much easier than you probably expect. Our global team of experts is ready to help implement LE Technology for you.
LE_ozer

Derya Ozer,
Technical Marketing Manager EMEA

»With locations around the world, we can offer personalized expertise and are in a prime position to react quickly and meet your needs.«

LE_ozer

Derya Ozer,
Technical Marketing Manager EMEA

»With locations around the world, we can offer personalized expertise and are in a prime position to react quickly and meet your needs.«

»With locations around the world, we can offer personalized expertise and are in a prime position to react quickly and meet your needs.«

LE_ozer

Derya Ozer,
Technical Marketing Manager EMEA

LE Technology sounds perfect to me. But do I have to change my entire production process now?

Absolutely not, our technology offers an incremental change to Low Emission. Just read further to learn more.

I want to change my process, where do we start?

At first, our experts inspect the forming and the green sand process. After that, we define together how we can optimize your process step by step.

I am mainly concerned about certain emissions not exceeding a certain level. Can we focus on that?

Our foundry service lab always gives a characterization of every emission of your green sand system. The following exchange concept then adapts to your needs.

Do I have to shut down all my processes during the change to LE Technology?

Every planning step is in your hands and supported by our Clariant foundry experts. LE Technology is introduced to your green sand systems by our Clariant foundry service labs and follows a schedule we define together.

After implementation, I might not have the knowledge to monitor the changes and their outcome. Can we stay in contact?

Of course. Our Clariant foundry experts regularly discuss the results, the next exchange step, as well as the final implementation with you.

ECOSIL® LE fulfills EcoTain® criteria

OUR APPROACH TO SUSTAINABILITY

EcoTain® is our label for sustainability excellence products and solutions showcasing best-in-class performance. They highlight our contributions to a sustainable future and add value to our customers and society as a whole.

ECOSIL® LE fulfills EcoTain® criteria

OUR APPROACH TO SUSTAINABILITY

EcoTain® is our label for sustainability excellence products and solutions showcasing best-in-class performance. They highlight our contributions to a sustainable future and add value to our customers and society as a whole.
DV_Quinacridone_ecotain

To sum up:

THE BENEFITS AT A GLANCE

Low waste generation

Low waste generation
High actives concentration and lower BTEX concentration in the sand system yield higher sand recycling rates and reduce waste sand.

Low green sand emissions

Low green sand emissions
LE Technology lowers toxic BTEX emissions (benzene, toluene, ethyl benzene and xylene) by preventing them from forming during casting.

Unrivaled productivity

Unrivaled productivity
Fast mixing, high actives concentration and low defect rates boost foundry throughput and productivity.

High precision castings

High precision castings
Smooth surfaces and low sand adhesion create high-precision and perfectly formed castings that help you stay competitive in a tough environment.

Total Cost of Ownership

Total Cost of Ownership
By switching to LE Technology in your foundry, you will not only contribute to environmental protection, but you will also reduce your total costs.

  • ECOSIL® LE:

    WHAT IT CAN DO FOR YOU

    ECOSIL® LE combines the properties of GEKO® LE and high-quality coal in a premix form. Carefully selected types of bentonites, coal, graphite and dispersant grades balance the individual challenges of the various molding steps and ensure optimized productivity and casting quality. Since lustrous carbon generation is no longer a main requirement of the coal part of the premix, BTEX emissions can be drastically reduced while maintaining high throughput and low scrap rates.

    Reduction of emissions of aromatic compounds

    • ECOSIL® LE minimizes the usage of traditional lustrous carbon generators in the green sand system and thus reduces the production of BTEX emissions during the casting process

    Clean casting surfaces

    • ECOSIL® LE provides for the creation of an even coating of the quartz sand granules with graphite as a separating agent; thus, the bonding between molding sand and casting is significantly reduced and clean casts are produced that easily separate from the mold

    Improved productivity

    • Optimized bentonite properties allow high production throughput, balancing mold fragility and easy shake-out
    • Improved flow properties of green sand yield excellent mold-filling capacity
    • Perfect mold stability and clean surfaces reduce scrap rates and rework efforts
    • Good productivity even under difficult processing conditions like short mixing times, high used-sand temperatures or high core-sand inflow

    Optimized mold characteristics

    • Selected, high-quality coal grades balance gas formation, swelling and water storage properties to achieve an orchestrated action of a reducing atmosphere (corrosion prevention), gas cushioning on the mold surface (no metal penetration) and mold dimensional stability (low scrap and rework)
    • Controlled grain size distribution of the coal reduces the risk of brittle fractions of the mold and of explosion penetration during the casting process
  • GEKO® LE:

    WHAT IT CAN DO FOR YOU

    GEKO® LE is an effective booster for foundry productivity consisting of an optimum blend of high-quality bentonites, selected graphite grades and suitable dispersants. It provides for superior quality in precision castings while minimizing BTEX emissions from the green sand system.

    Reduction of emissions of aromatic compounds

    • GEKO® LE minimizes the usage of traditional lustrous carbon generators in the green sand system and thus reduces the production of BTEX emissions during the casting process

    Clean casting surfaces

    • GEKO® LE provides for the creation of an even coating of the quartz sand granules with graphite as a separating agent; thus, the bonding between molding sand and casting is significantly reduced and clean casts are produced that easily separate from the mold

    Improved productivity

    • Optimized bentonite properties allow high throughput balancing mold fragility and easy shake-out
    • Improved flow properties of green sand yield excellent mold-filling capacity
    • Perfect mold stability and clean surfaces reduce scrap rates and rework efforts
    • Good productivity even under difficult processing conditions like short mixing times, high used-sand temperatures or high core-sand inflow

Download File

Please enter your contact details and the file will start downloading immediately after your details have been submitted. This only has to be done for the first file you download on this site. Thank you for your understanding.

Personal Information

Your Name*



Your Email*

Your position

Your Company

Want to know more?

LET’S GET IN TOUCH

We’d really like to hear from you. Please give us
a call or contact one of our professionals for more
information or for questions about LE Technology.

contact map
Discover more stories.
Discover_Value
Enter our world of ideas for tomorrow: Discover Value.
Solutions. ECOSIL®

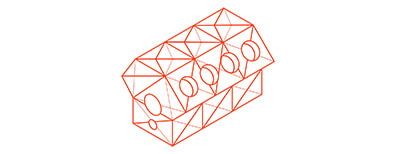

teaser_ecosil
ECOSIL® lustrous carbon former ensures easy mold separation, improved surfaces and increased mold stability. Learn more
Home. Back to main page.
Corporate
Go to our homepage to learn about our company, our solutions, careers and investor relevant information. Read more

Request to Clariant

Please enter your contact information so we are able to process your request. Thank you for your interest.

Your Name



Your Email

Your position

Your Company

Country

Phone

Disclaimer:
This information corresponds to the present state of our knowledge and is intended as a general description of our products and their possible applications. Clariant makes no warranties, express or implied, as to the information’s accuracy, adequacy, sufficiency or freedom from defect and assumes no liability in connection with any use of this information. Any user of this product is responsible for determining the suitability of Clariant’s products for its particular application.


* Nothing included in this information waives any of Clariant’s General Terms and Conditions of Sale, which control unless it agrees otherwise in writing. Any existing intellectual/industrial property rights must be observed. Due to possible changes in our products and applicable national and international regulations and laws, the status of our products could change. Material Safety Data Sheets providing safety precautions, that should be observed when handling or storing Clariant products, are available upon request and are provided in compliance with applicable law. You should obtain and review the applicable Material Safety Data Sheet information before handling any of these products. For additional information, please contact Clariant.

* For sales to customers located within the United States and Canada the following applies in addition: No express or implied warranty is made of the merchantability, suitability, fitness for a particular purpose or otherwise of any product or service.

© Trademark of Clariant registered in many countries.
® 2013 Clariant International Ltd
