MegaMax® 900

Step Change in Methanol Synthesis Catalyst

MegaMax® 900 is Clariant’s latest generation of methanol synthesis catalysts. It is based on the well-proven MegaMax 800 that has provided highest performance in all types of methanol synthesis reactors and feedstocks globally.

Compared to its predecessor, MegaMax 900 has an optimized formulation, and is manufactured using a new, innovative production technique. This leads to a superior microstructure with increased physical robustness and more active sites. Consequently, the new methanol synthesis catalyst shows a significantly higher activity and a longer lifetime.

The higher activity leads to an increased conversion rate, especially when operating at lower temperatures and lower loop pressure, thus providing higher lifetime productivity, less energy consumption, and a lower CO2 footprint.

Main Benefits

Clariant_Icon_Support Profitable Growth_06-10-2020

INCREASED METHANOL
PRODUCTION

Clariant_Icon_Production Scheduling_06-10-2020

INCREASED LIFETIME
 PRODUCTIVITY

Clariant_Icon_Energy Saver_Plug_06-10-2020

LESS ENERGY CONSUMPTION

Product Benefits

Clariant_Icon_Enhance Foam Range_06-10-2020

SUPERIOR INTRINSIC
  ACTICITY

Clariant_Icon_Less Heating_Improved Isolation_Thermal_Thermometer_06-10-2020

OPERATION AT
LOWER TEMPERATURES

Clariant Image Pressure Drop 20220315

OPERATION AT
LOWER LOOP PRESSURE

Clariant_Icon_Protection_Shield_06-10-2020

HIGH POISON RESISTANCE
due to high copper surface area

Clariant_Icon_Increased Accuracy_Bolt_To Score_06-10-2020

LOW BY-PRODUCT FORMATION
through optimized metal dispersion

Customer Benefits

Clariant_Icon_Less Emissions_Low Emission Technology_06-10-2020

LOWER
CO2 FOOTPRINT

Clariant_Icon_ROI_cropped_072020

 SIGNIFICANT
MONETARY BENEFITS

Clariant_Icon_Endurance_Sand Glass_06-10-2020

INCREASED
CATALYST LIFETIME

Performance of Megamax 900

Due to its optimized formulation, MegaMax 900 has up to 18% higher relative activity compared to the previous generation and outperforms it over the entire temperature range. This allows a higher methanol production, or energy and feedstock savings. This next-generation methanol synthesis catalyst is also far more resistant to deactivation, which leads to a higher lifetime production and a longer catalyst lifetime. Furthermore, the optimized metal dispersion of MegaMax 900 ensures higher selectivity, resulting in a low by-product formation.

Intrinsic Activity

Over the entire temperature range, MegaMax 900 outperforms the previous generation with up to 18% higher relative activity. In particular, the catalyst demonstrates an improved intrinsic low-temperature activity (Fig. 1).

Comparison relative activity at 210ºC of MegaMax 800 vs MegaMax 900

Clariant Image Graph MegaMax 900 Intrinsic Activity 210Degree 20220315

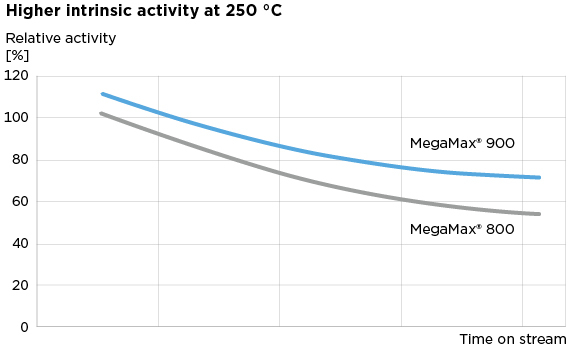

Comparison relative activity at 250ºC of MegaMax 800 vs MegaMax 900

Clariant Image Graph MegaMax 900 Intrinsic Activity 250Degree 20220315

Longer Lifetime

  • Demonstrated in a tests series of over 1200 hours in a pilot plant, under various feed and stress conditions
  • Superior activity under all conditions
  •             >Up to 11% yield increase

  • Much less deactivation compared to MegaMax 800
Clariant Image Graph MegaMax 900 Longer Lifetime 20220315

Higher Selectivity

The optimized metal dispersion of the MegaMax 900 formulation ensures low by-product formation. Despite significantly higher methanol yields with MegaMax 900, the absolute by-product formation is comparable to MegaMax 800. This proves its overall higher selectivity.

Clariant Image Graph MegaMax 900 Higher Selectivity 20220315

MegaMax series methanol synthesis catalysts

A HISTORY OF OUTPERFORMANCE

Clariant Image Infographic Methanol Catalysts History Timeline 20220315
